Gallery of Medical Devices - Thoracic and Lumbar Spine continued


By Tim B. Hunter, MD and Mihra S. Taljanovic, MD, PhD



Medical Devices of the Thoracic and Lumbar Spine continued....

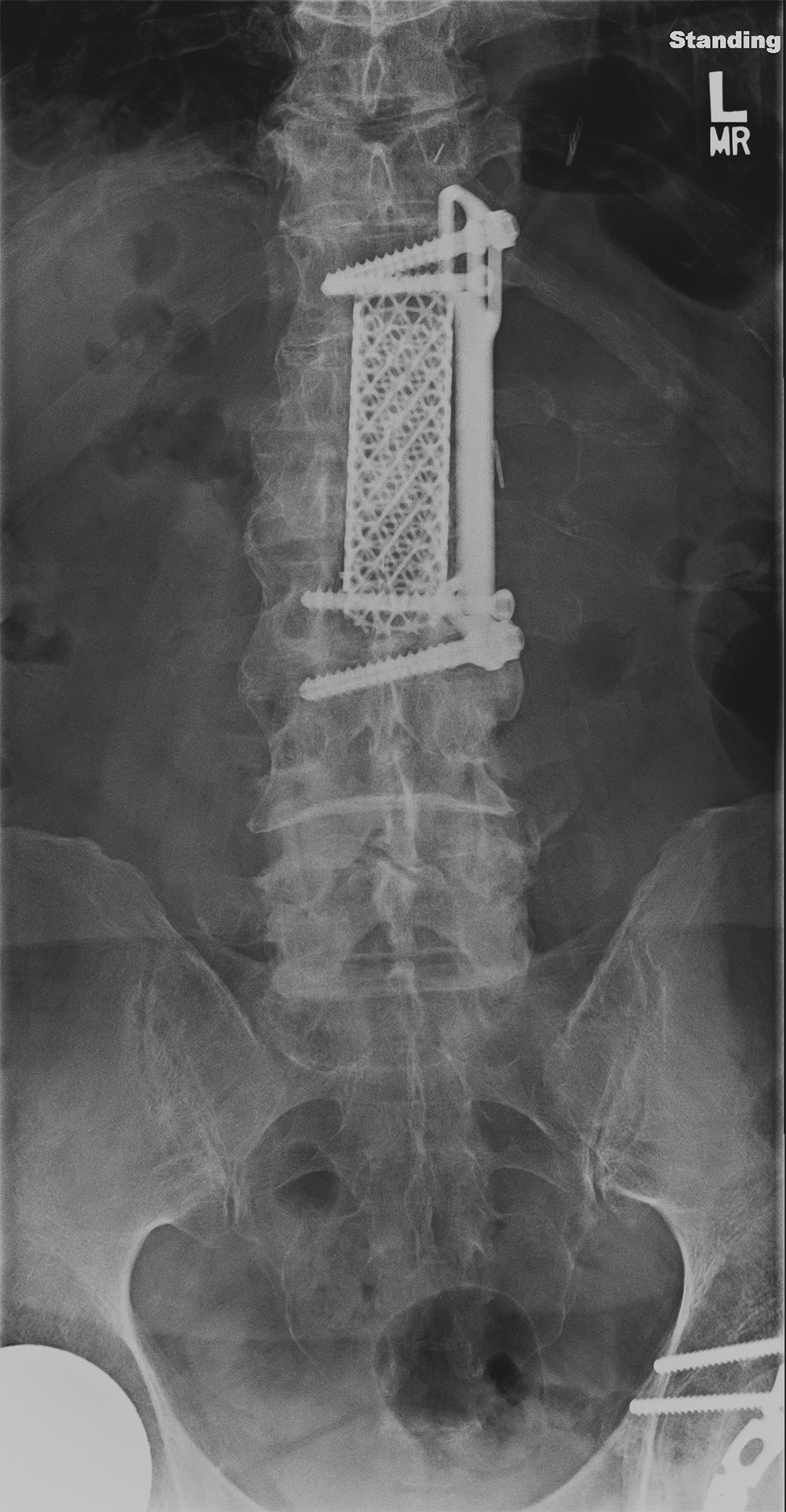

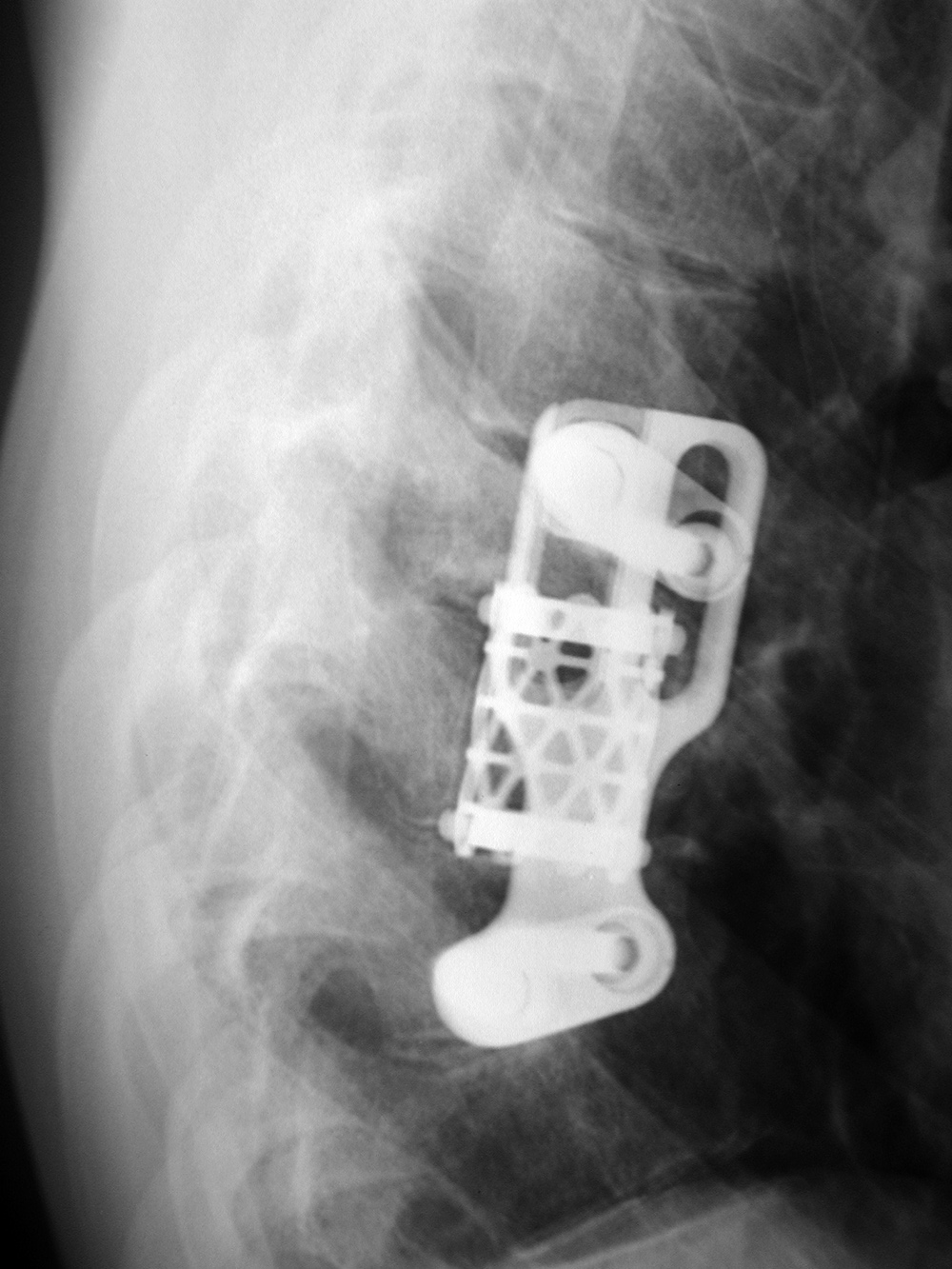

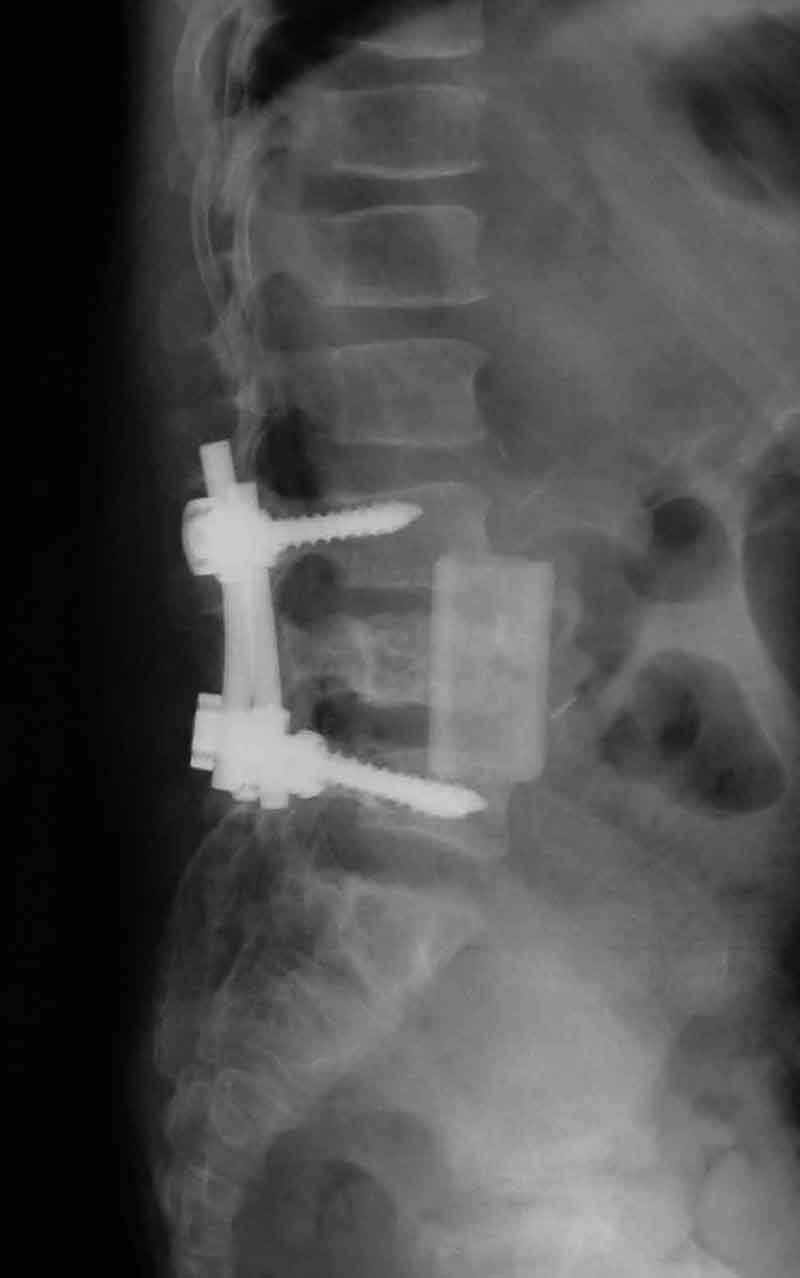

Harms vertebral cage (AP view) Harms vertebral cage (lateral view) Lumbar spine bony disk strut, pedicle screws, and pedicle rods (AP view) Lumbar spine bony disk strut, pedicle screws, and pedicle rods (lateral view)
Harms vertebral cage and side plate and screws Harms vertebral cage and side plate and screws Lumbar spine disk strut Lumbar spine bony disk strut
There is a vertebral cage and side plate and screws in the lower thoracic spine for treatment of a spinal tumor.  From Hunter, 1994 From Hunter, 2004
Vertebral compression fracture treated by expandable corpectomy device TLSO brace (Boston brace)

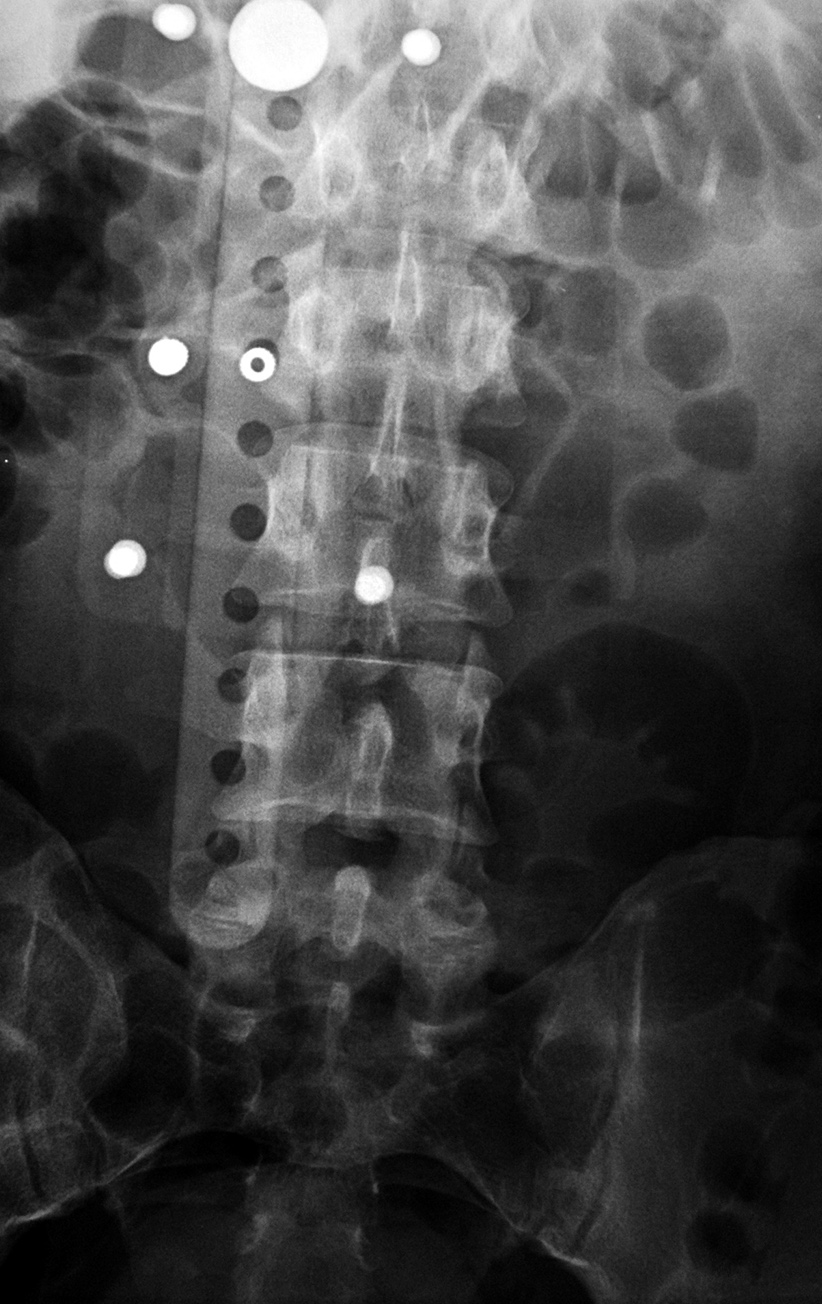

Vertebral compression fracture Expandable corpectomy device TLSO brace AP view TLSO brace lateral view
  There are also bilateral pedicle screws and connecting rods above and below the level of the fracture. The brace stabilizes an L1 compression fracture.
Anterior lumbar interbody fusion (ALIF) Pedicle fixation screws and rods

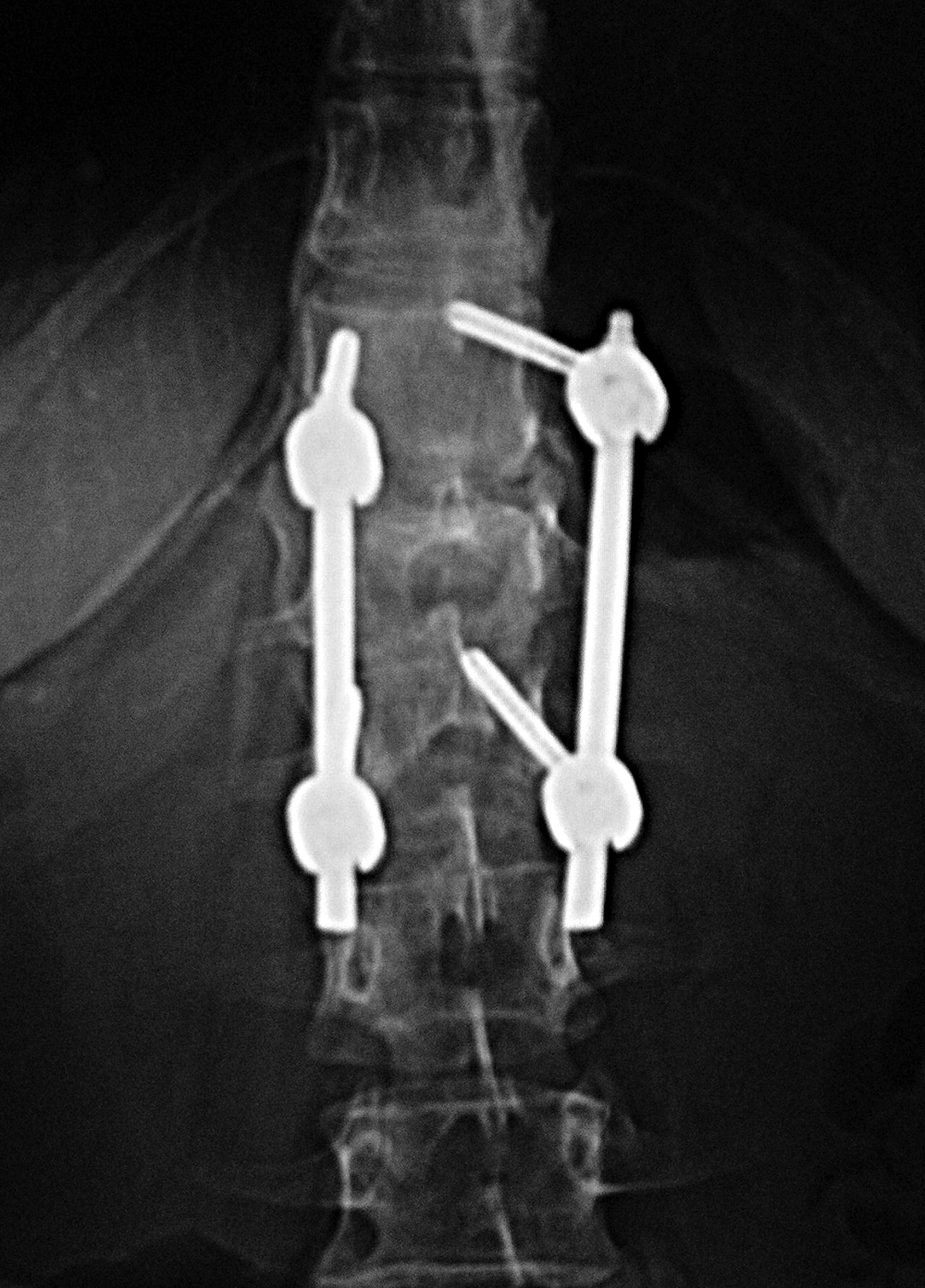

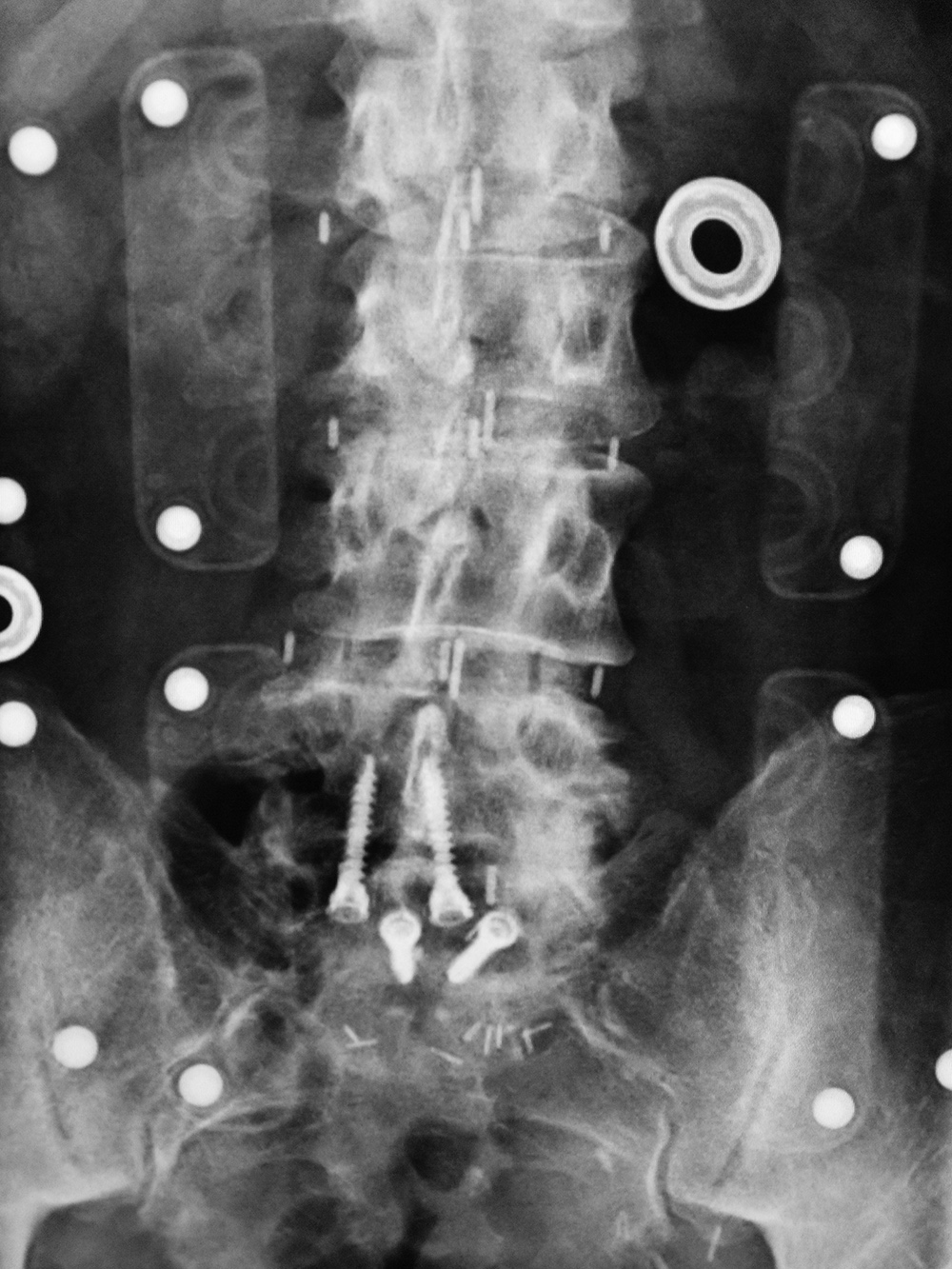

ALIF L5-S1 ALIF L5-S1 T12-L2 fixation T12-L2 fixation
47 year-old woman with anterior lumbar interbody fusion (ALIF) at L5-S1. 20 year-old woman with L1 vertebral body compression fracture treated with T12-L2 posterior spinal fusion using pedicle screws at T12 and L2 with connecting rods on each side.
Anterior lumbar interbody fusion (ALIF) ILIF: interlaminar lumbar instrument fusion

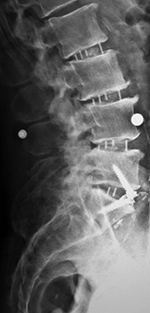

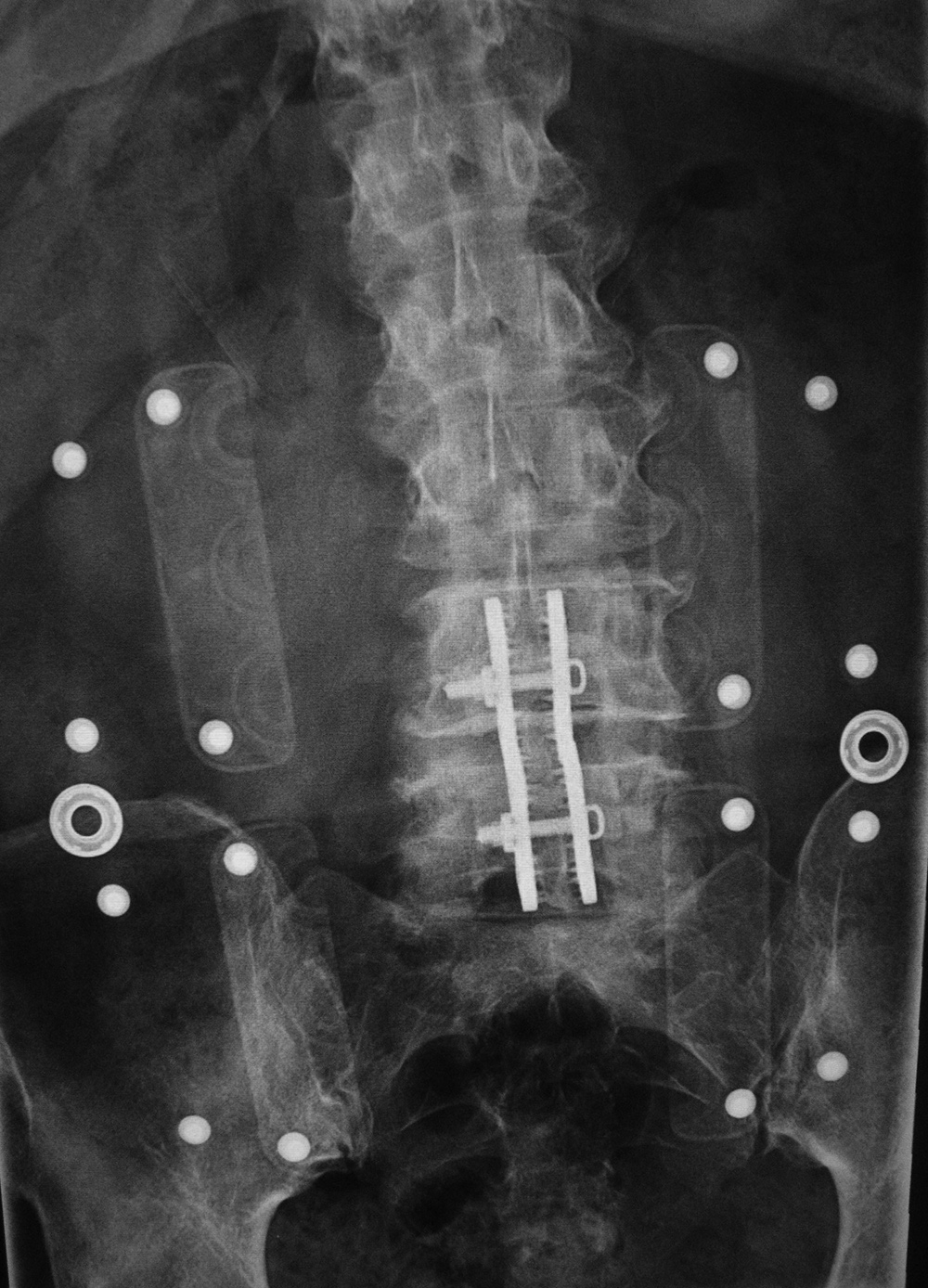

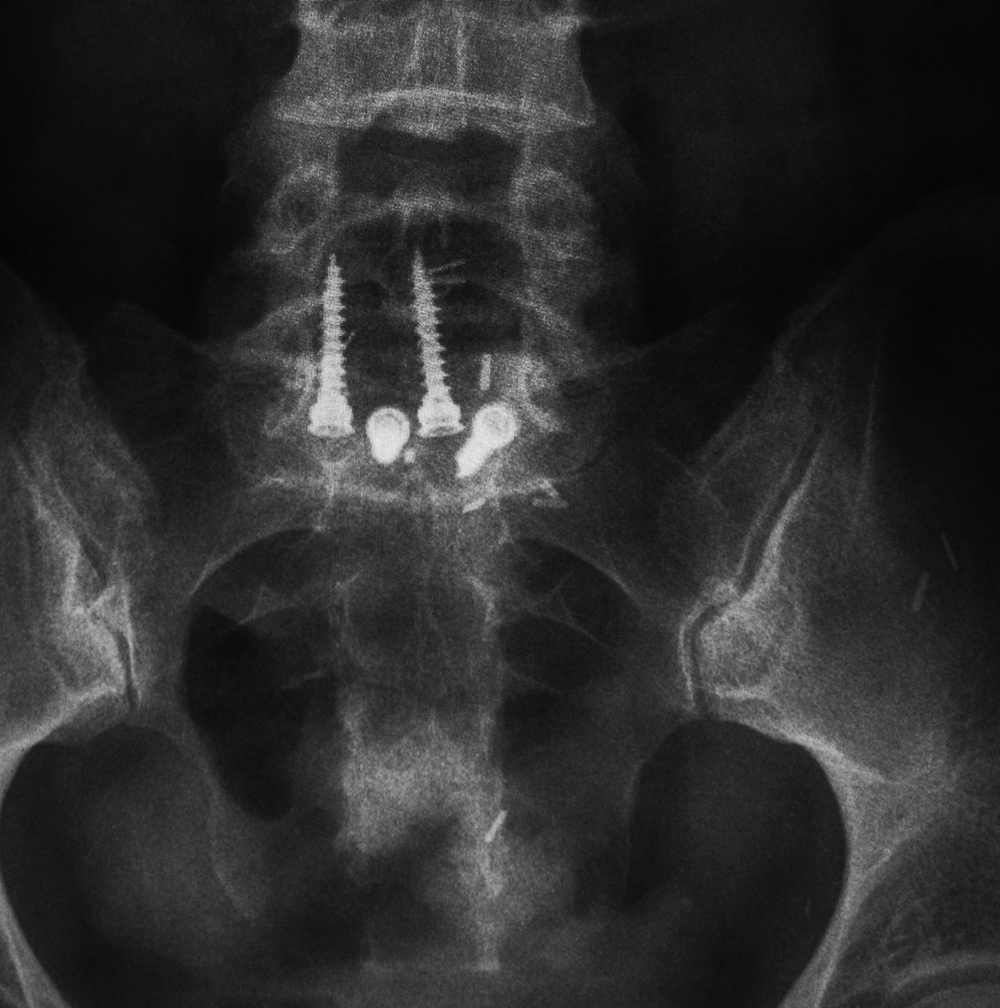

ALIF at L5-S1 ALIF at L5-S1 ILIF ILIF
60 year-old man with L5-S1 anterior diskectomy and interbody fusion with zero-profile fixation screws at L5-S1. There are PEEK interbody disk grafts at multiple levels from XLIF prior surgery at L2-3 to L4-5. 67 year-old woman with L3-4-5 ILIF. There are partial laminectomies at L3 and L4. Posterior L3-5 stabilization is obtained with a spinous process clamp. There is also posterior L3-5 arthrodesis using structural allograft. The patient is wearing a TLSO brace.

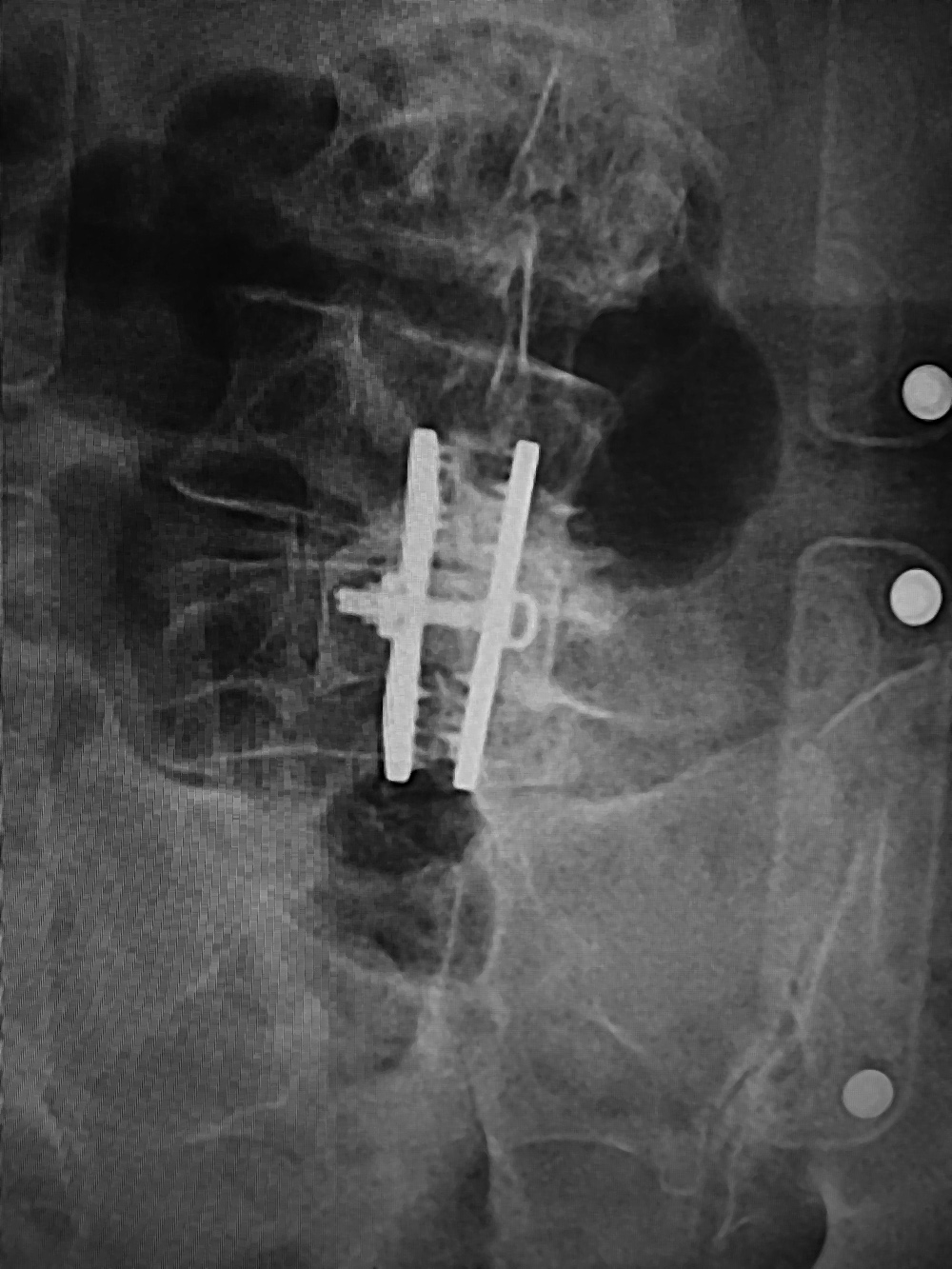

Interspinous clamps (ILIF) at L4-5 Interspinous clamps (ILIF) at L4-5

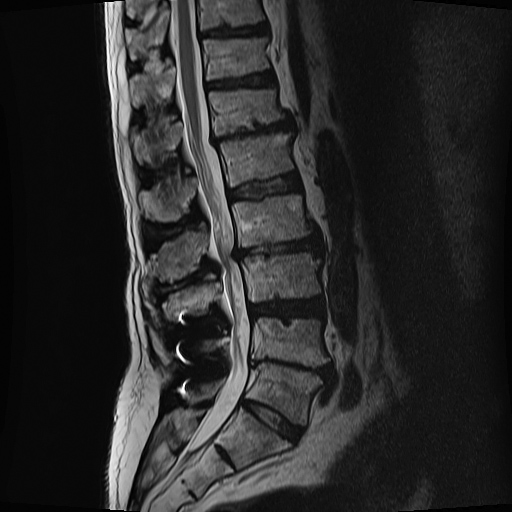

Interspinous clamps L4-4 Interspinous clamps at L4-5 X-Stop device X-Stop device
67 year-old woman with lower lumbar spinal stenosis. The patient is wearing a TLSO brace. 76 year-old woman treated for degenerative spondylolisthesis at L4-5. The patient is wearing a TLSO brace.

Back to Top

Medical Devices of the Thoracic and Lumbar Spine continued....

Posterior Instrumented Lumbar fusion (PLIF) X-stop device

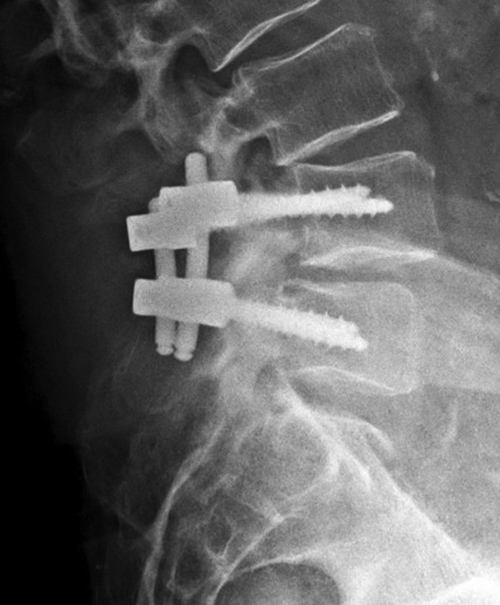

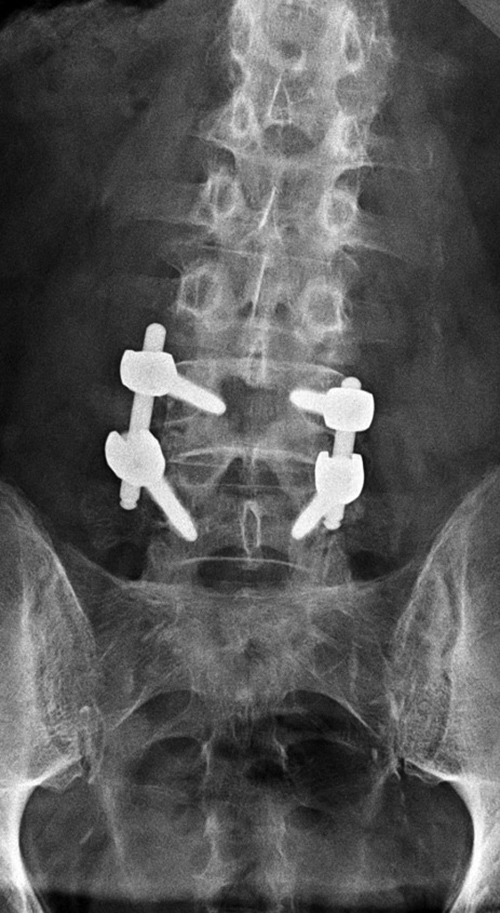

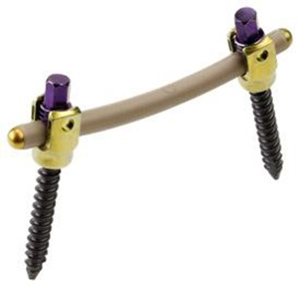

PLIF device PLIF AP PLIF lateral view X-stop device
Screws are placed through the pedicles into the vertebral bodies. The screws are connected together on each side with rods or a plate placed over the pedicle screws on each side. Some of these systems are also combined with posterolateral bony fusion masses. Image from rheumatology network
Steffee Plates - Posterior Instrumented Lumbar Fusion (PLIF) Coflex device

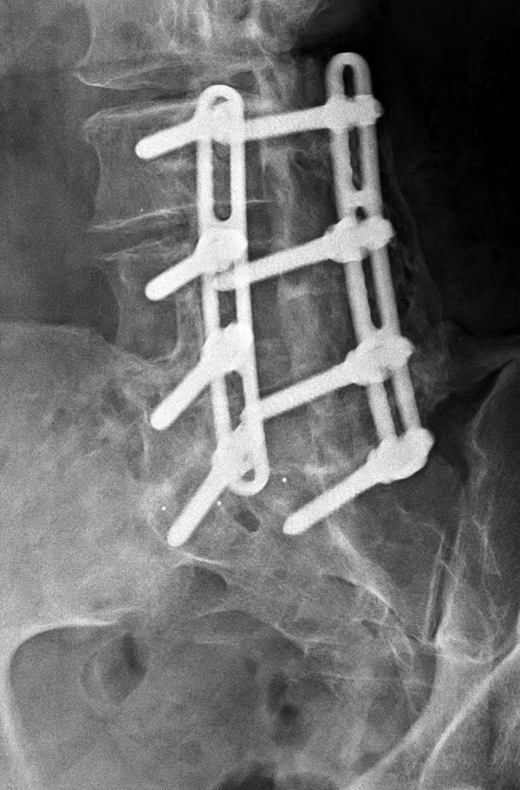

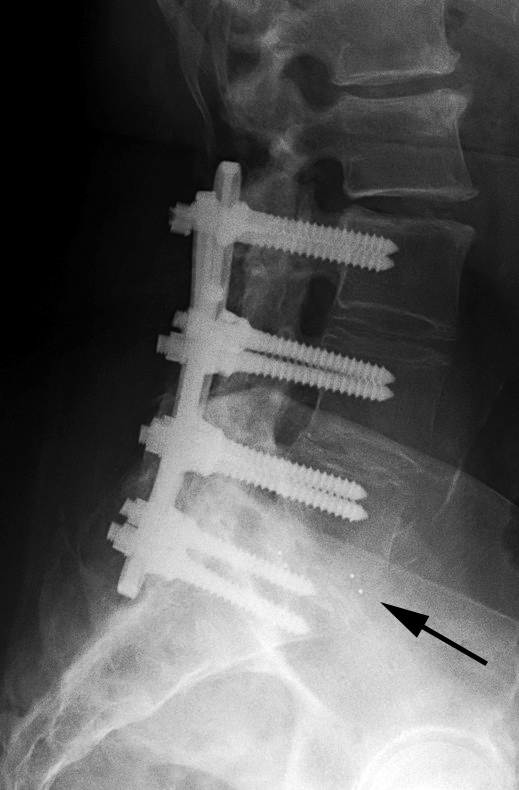

Steffee plates AP view Steffee plates obique view Steffee plates lateral view Coflex device

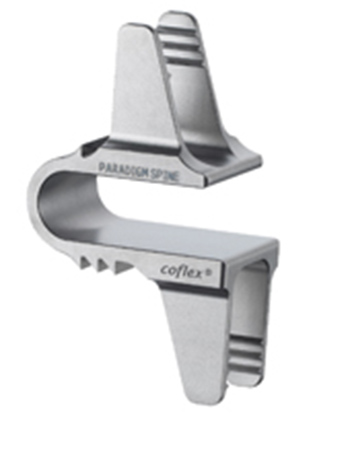

There is also a Brantigan disk cage at L5-S1 (arrow on lateral view) The Coflex device is made from titanium. The "U" shaped device is positioned horizontally with its apex anterior. The two long arms of the "U" parallel the long axis of the spinous process. The ridges help keep the device stably attached to the spinous process. Image from Paradigm Spine

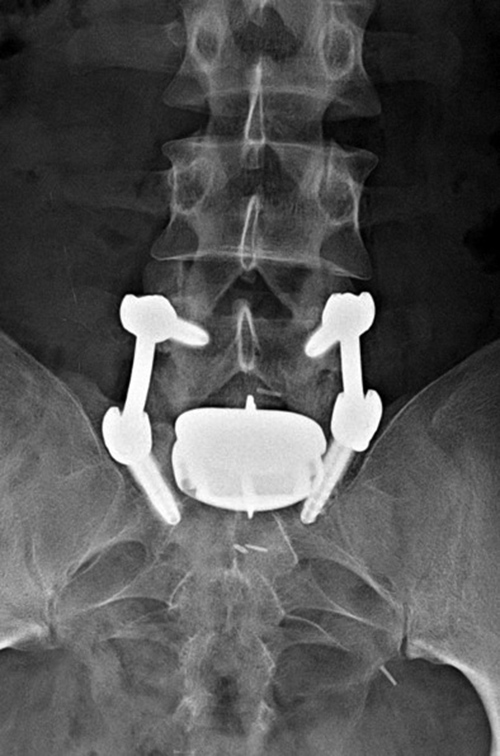

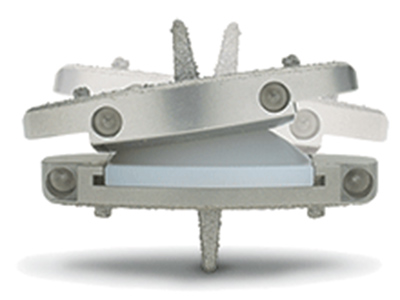

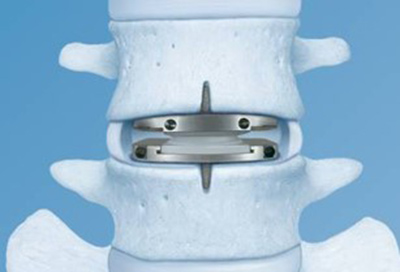

ProDisc L Lumbar disk replacement

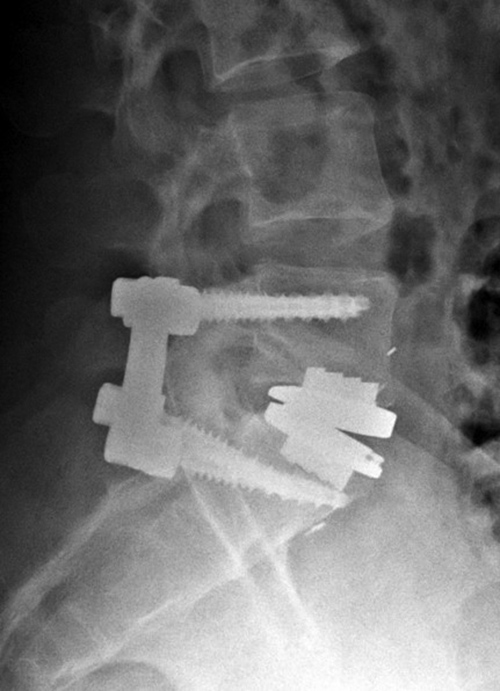

ProDisc-L ProDisc L Lumbar disk replacement Lumbar disk replacement
ProDisc L (Synthes) artificial lumbar disk. © DePuy Synthes 2016.  All rights reserved. ProDisc® L is a trademark of DePuy Synthes. There is also posterior spinal fusion.
PEEK cages packed with iliac crest autograft material in anterior lumbar instrumented fusion (ALIF) with posterior spinal fusion (PSF) at L5-S1

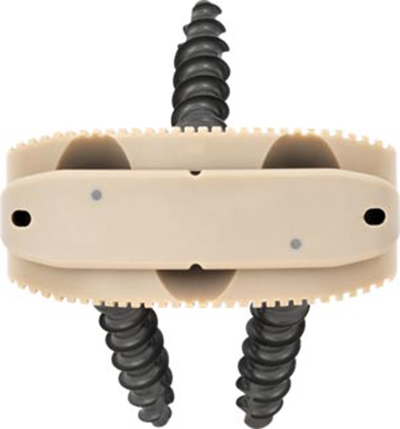

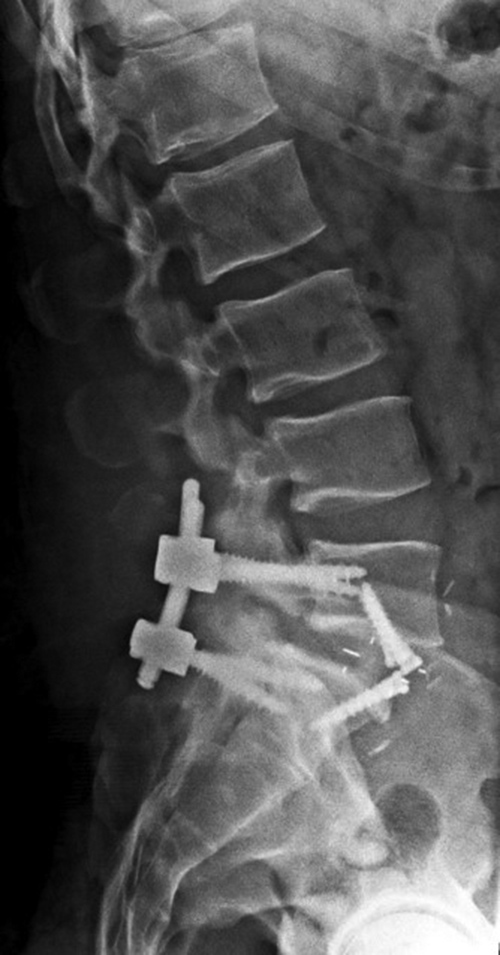

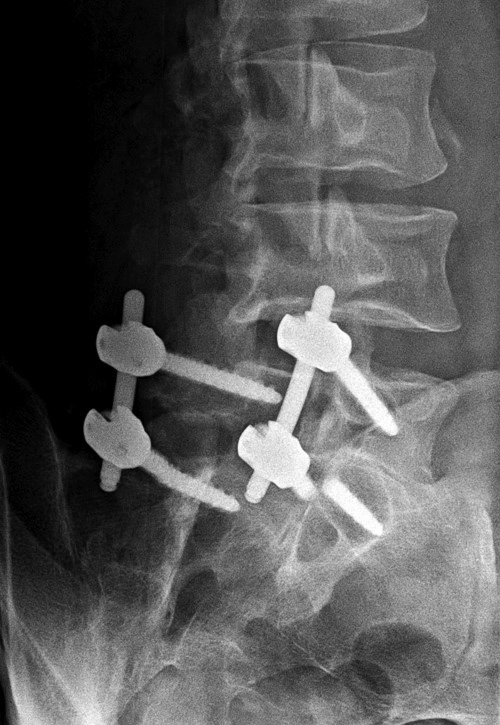

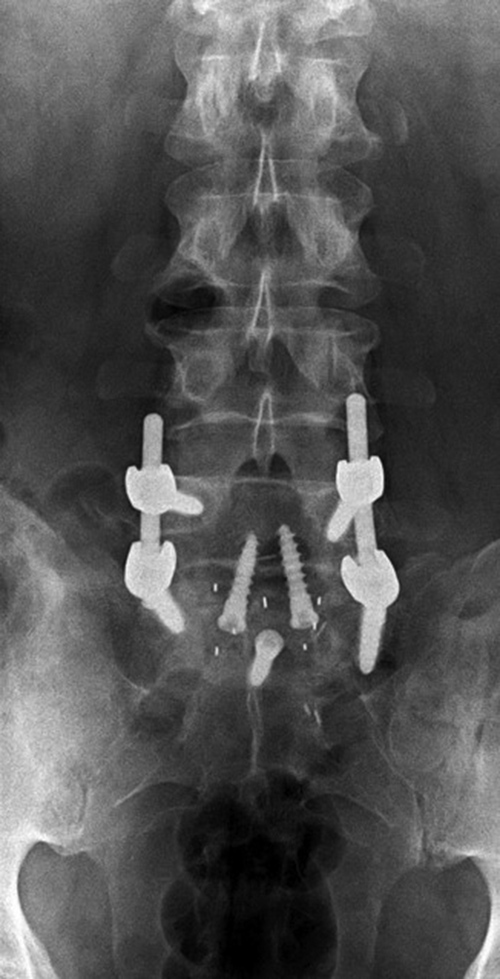

PSF failure ALIF and PSF revision AP view ALIF with PSF revision lateral view Sovereign system
48-year old man with L5-S1 laminectomy and posterior spinal fusion (PSF) for radiculopathy and isthmic spondylolisthesis. There was hardware failure. A subsequent ALIF with a Sovereign cage device (Medtronic) was performed as well as revision of the PSF at L5-S1. Image in the fourth column Reprinted with the permission of Medtronic, Inc. © 2016

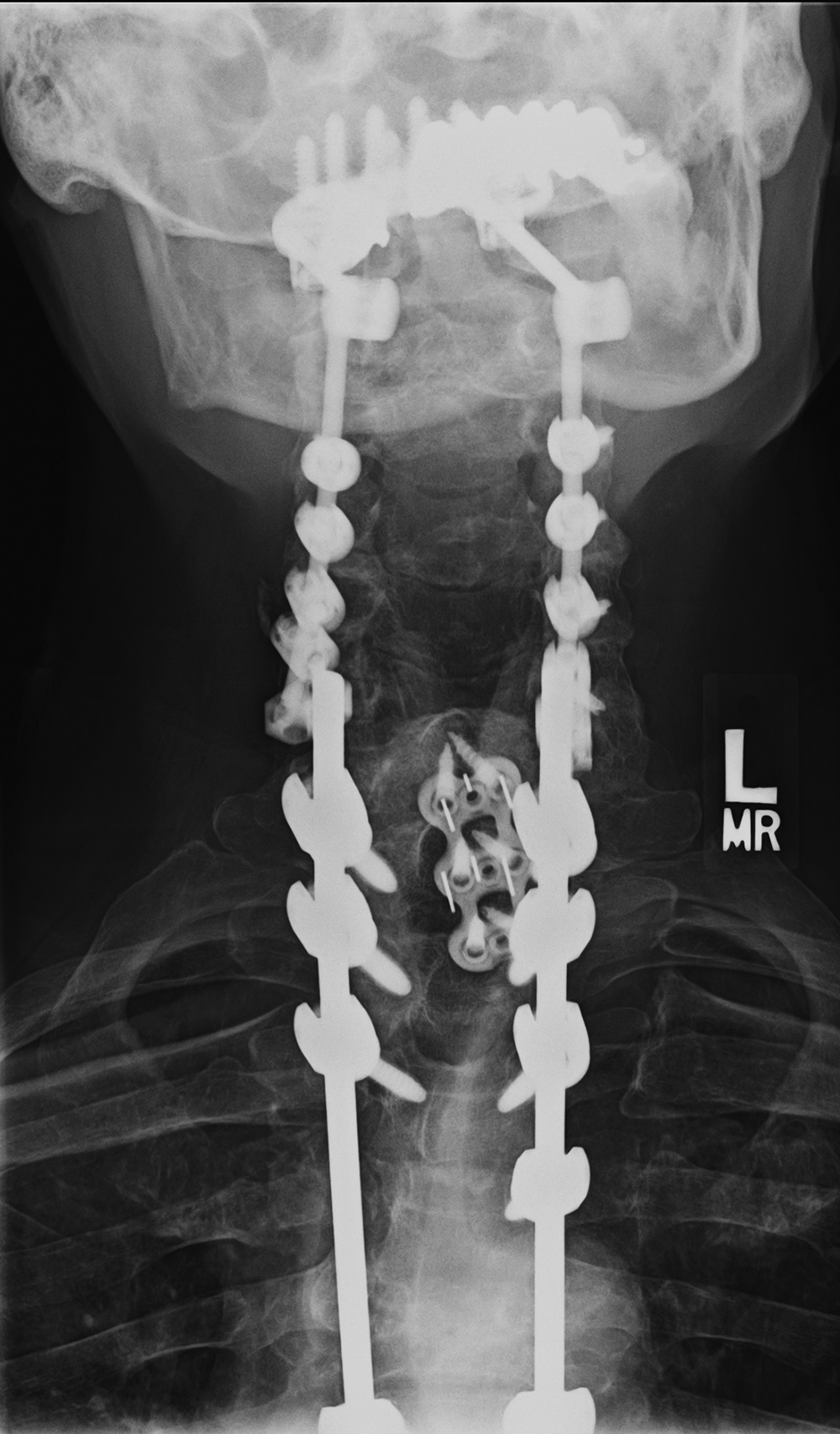

Occiput-T8 posterior fusion with anterior cervical fusion from C6-T1.
Occiput-T8 fusion Occiput-T8 fusion Occiput-T8 fusion Occiput-T8 fusion
59 year-old man with occiput to T8 posterior fusion. There is anterior cervical fusion from C6-T1. PEEK disk cages are present at C6-7 and C7-T1. An old compression fracture is present at T5. In the cervical spine lateral mass screws are at C3-6 bilaterally. In the thoracic spine pedicle screws are at T1-3 and T6-8 on the right and at T1-4 and T6-8 on the left. Laminectomies have been performed from C3 to C6.

Back to Top



Medical Devices of the Lumbar Spine continued...
