Internal Fixation...pins, wires, & screws


Since the late 1950s, open reduction and internal fixation (ORIF) has been used to treat fractures. It enables rapid restoration of bone anatomy and early patient mobilization to overcome the limitations encountered when fractures are treated with skeletal traction or cast immobilization (Ruedi, 2007; Benjamin, 1994; Freiberg, 2001; Hunter, 2001).

The main goal of internal fixation is the achievement of prompt and, if possible, full function of the injured limb, with rapid rehabilitation of the patient. The majority of internal fixation implants are currently made of stainless steel. Occasionally, less strong but biologically superior and more elastic titanium implants are favored.

Numerous devices are available for internal fixation. These devices can be roughly divided into a few major categories: a) wires, b) pins and screws, c) plates, and d) intramedullary nails or rods. Staples and clamps are also used occasionally for osteotomy or fracture fixation (Ruedi, 2007; Benjamin, 1994; Wiss, 2013; Berquist, 1995; Freiberg, 2001; Hunter, 2001; Parker, 2002; Stover, 2001; Craig, 2001).



Fixation pins come in many designs and sizes and can be smooth or threaded. Among the most commonly used fixation pins are Kirschner (K)-wires (figure: pins in plaster; figure: K wires) and Steinman pin (figure: uniplanar external fixator with Steinman pins; figure: Steinman pins stabilizing left humerus fracture). These devices are mainly used for temporary fixation of fracture fragments during fracture reduction or to attach skeletal traction devices. Sometimes, they act as guides for the accurate placement of larger cannulated screws.

Percutaneously placed Kirschner wires commonly protrude through the skin for ease of later removal. Occasionally, pins are used for definitive fracture treatment and should be especially watched for migration. The Steinman pin is also occasionally used for wrist arthrodesis (Jebson, 2001). On rare occasions pins may be used for other applications, such as tendon reconstruction or lengthening (figure: Achilles tendon lengthening pin).

It should be noted the terms pins and wires are commonly used interchangeably and inconsistently. Pins are more often thought of as straight thin metallic rods typically inserted so as to retain their straight form. However, they can be cut and bent for a given treatment situation. Wires are most often though of as thinner metallic rods easily bent and shaped similar to common wire used around the house or in the garden. Cables and bands are larger more rigid wires.



Wires are sometimes used alone but more commonly in combination with other orthopedic fixation devices. They are of various diameters and can be braided. Wires are frequently used to reattach osteotomized bone fragments (i.e., the greater trochanter to the femur or the olecranon process to the ulna). In combination with pins or screws, wires are sometimes used to create a tension band, which uses distractive muscular forces to create compression at the fracture site (figure: olecranon fracture fixation) (figure: patellar tension band wiring).

Wires are used to suture bone and soft tissue, and they occasionally break (figure: broken trochanteric wire). However, if there is no loss of bone fragment position, breakage of wires is usually of little significance. Circumferential cerclage wires are commonly used in conjunction with intramedullary fixation to stabilize long bone fragments and stems of prostheses or fixation plates (figure: femur cerclage wires). One of the potential complications with cerclage wires is interruption of the periosteal blood supply with subsequent osteonecrosis or fracture nonunion (Ruedi, 2007; Benjamin, 1994; Wiss, 2013; Berquist, 1995; Freiberg, 2001; Hunter, 2001).



A variety of screws are used in everyday orthopedic practice. The main parts of a screw are the screw head, which is its bulbous end and the part engaged by the screwdriver, and the shank or core, which can be of variable diameter and is partially or fully threaded. The distance between the threads is called “pitch” (figure: anatomy of a fixation screw).

Screws are of different sizes and can be self-tapping (which have cutting ends) or non-self-tapping. Non-self-tapping screws are easier to insert and remove, but they are not the best choice for fixing fractures in regions with a thin cortex. Some screws have a “standard” point and others a “trocar” point. Screws are commonly used in combination with plates and nails or rods. The use of different types and designs of screws depends on the surgeon’s preference (Ruedi, 2007; Benjamin, 1994; Wiss, 2013; Berquist, 1995; Freiberg, 2001; Hunter, 2001).

There are two basic types of fixation screws, cortical and cancellous, according to the Arbeitsgemeinschaft fur Osteosythesefragen - known to English-speaking countries as the Association for the Study of Internal Fixation [ASIF]. Cortical bone screws are often fully threaded and usually have a smaller thread diameter and pitch (figure: cortical and cancellous fixation screws). Cortical screws are designed to be used in the diaphysis.

Cancellous bone screws are intended to cross long segments of cancellous bone. They typically have deeper threads, larger thread diameters, and a greater pitch than cortical screws. Cancellous screws are usually partially threaded with threads only on their ends (figure: olecranon cancellous bone screw; figure: hip cannulated cancellous screws). Occasionally, cancellous screws can be fully threaded (Ruedi, 2007).

Schanz screws have a larger core diameter and less deep self-cutting threads, which provides better buttressing against forces that act perpendicular to the long axis of the screw (figure: uniplanar external fixator). There are other types of diaphyseal unicortical locking screws that are used with plates to provide better anchorage and which can function as a fixed angle device (Ruedi, 2007).

A screw that crosses a fracture line (ideally, perpendicular to the fracture line) is called an “interfragmentary” screw or "lag" screw. This screw provides compression between the fracture fragments to enhance fracture stability and promote healing. Sometimes a lag screw is more specifically defined as an interfragmentary screw with a gliding hole in the near (cis) cortex and a threaded hole in the far (trans) cortex.

Fully threaded cortical interfragmentary screws are used in the diaphysis of bones, because they are easier to remove than partially threaded cancellous screws. Sometimes, an interfragmentary screw is placed through a fixation plate. Interfragmentary screws are preferred in the fixation of articular fractures to obtain anatomic reduction and adequate stability. Interfragmentary screws are also preferred for treating juxtaarticular fractures.

Self-tapping screws, which have cutting ends, are not recommended for use as interfragmentary screws because removal and reapplication of the screw may be needed. Interfragmentary screws are used occasionally to treat open fractures (i.e., in case of very long oblique spiral fractures or in the presence of a large well-vascularized third fragment that requires fixation) (Ruedi, 2007; Benjamin, 1994; Berquist, 1995; Freiberg, 2001; Hunter, 2001).

In certain situations, a washer (metallic ring) is used with a screw to prevent the screw head from sinking into the bone. Washers enhance the compressive area of a screw in regions of thin cortex, and they prevent fractures under the screw (figure: dynamic hip compression screw with cannulated fixation screw and washer).

Loosening of well-placed screws is induced by micro motion at the interface between the thread and bone. From a radiologic standpoint, it is important to observe and report possible complications including screw breakage, loosening, or change in position (Ruedi, 2007; Benjamin, 1994; Hunter, 2001). A screw that is used to stabilize the distal tibiofibular syndesmosis is called a syndesmotic screw. This screw is placed across the distal tibiofibular joint parallel and 1–2 cm proximal to the joint line. One or more syndesmotic screws can also be placed through the holes of a fibular fixation plate (figure: syndesmotic screws; figure: syndesmotic screws and medial malleolus cortical screws). Syndesmotic screws are usually removed 6 –12 weeks after placement, after the interosseous membrane has healed (Ruedi, 2007; Benjamin, 1994; Berquist, 1995; Freiberg, 2001; Hunter, 2001).

Cannulated screws have a hollow shank, which allows them to be placed more exactly over a guide pin (figure: cannulated screw). They are commonly used for fixation of subcapital hip fractures and may be inserted percutaneously with fluoroscopic guidance (figure: hip cannulated screws). This surgery is commonly performed by using a fracture table to provide traction and maintain reduction during the fixation (Ruedi, 2007; Benjamin, 1994; Berquist, 1995; Freiberg, 2001; Hunter, 2001).

A special type of screw used in the treatment of intertrochanteric proximal femur fractures is called a dynamic compression screw (device) consisting of a large lag screw with distal threads that is inserted into the femoral head and neck. This screw fits into the barrel of a side plate, which is secured to the femoral shaft with multiple cortical screws. The lag screw can slide within the barrel, which results in compression of the fracture site as the patient ambulates (figure: hip dynamic compression screw) (Ruedi, 2007; Benjamin, 1994; Berquist, 1995; Freiberg, 2001; Hunter, 2001). If the fracture settles, the lag screw slides within the barrel preventing the screw from piercing the femoral head and entering the hip joint space.

Large spiral or helical screws are sometimes used to secure femoral neck fractures, acting as a dynamic compression screw. This design is also used in other circumstances, such as a distal locking screw placed in an intramedullary rod (nail) (figure: blade spiral distal locking screw).

Another “special” screw is a Herbert screw, which was originally designed for the fixation of scaphoid fractures (figure: Herbert screw). Currently, this screw has a more broad application. The Herbert screw has threads of different pitch at both ends, with an unthreaded central shank. It does not have a head. It acts as a countersink, allowing different threads at its ends to draw the fracture fragments together (Ruedi, 2007; Benjamin, 1994; Hunter, 2001; Herbert, 1984). It is sometimes said to have cancellous threads on one end, while the other end has a larger diameter with cortical threads.

A similar screw is the Acutrak screw. It is headless with variable thread pitch on either end, but it does not have an unthreaded central shank (figure: Acutrak screw) (figure: Acutrak screws and endobuttons). It is very commonly used for the treatment of finger and wrist fractures. The Smart (toe) implant is a product of Stryker specifically designed for interdigital fusion of fingers or toes and other small bones. It is sometimes used in conjunction with K-wires and small fixation screws (figure: Smart toe implants).

For capsular, tendinous, and ligamentous repairs, a variety of anchor screws (suture anchors) are used (figure: suture anchors in glenoid rim; figure: suture anchor in humeral head). These screws have barbs and hooks for soft-tissue or bone attachment and allow for suturing of ligaments to the anchor, which is then placed in the bone (Ruedi, 2007; Benjamin, 1994; Hunter, 2001).

Other devices used for soft tissue anchoring are Endobuttons. An Endobutton is a cortical bone fixation device with a continuous loop suture and no fixation knot (figure: endobuttons). Endobuttons were designed for anterior cruciate ligament reconstruction and fixation but are also used for other ligamentous repairs (figure: ACL reconstruction with bioabsorbable interference screw and endobutton; figure: thumb endobuttons) (Melville, 2015). There is direct fixation of the repair graft onto a small metallic button like device through which continuous loop suturing is used with the fixation device secured directly to the external surface of cortical bone.

Fixation techniques for anterior cruciate ligament (ACL) grafts continue to evolve (figure: ACL ligament substitute). The Kurosaka screw, which is also called an interference screw, is designed to anchor the ACL graft into the lateral femoral condyle and proximal medial tibial metaphysis bone tunnels (Kurosaka, 1987) (figure: ABSOLUTE and Biosure interference screws; figure: interference (Kurosaka) screw). This screw is headless, short, and broad. There are a variety of designs for interference screws that act as anchors for the fixation of ACL grafts (Beevers, 2003; Pena, 1996). These screws can be metallic or bioabsorbable and radiolucent (figure: interference screw). Aside from interference screws, there are other devices used for the fixation of the ACL graft, including buttons, washers, staples, cross pins, polyester titanium buttons, and suture posts (figure: ACL repair with bioabsorbable interference screw and Endobutton).

The radiographic appearance of the knee after ACL reconstruction is usually initially evaluated with standard radiographs (Manaster, 1988). On the lateral radiograph, the tibial osseous tunnel should begin distally near the tibial tuberosity, course posteriorly, and exit the tibial articular surface immediately anterior to the anterior tibial spine. On the frontal radiograph, the tibial tunnel begins in the medial tibial side, courses laterally and proximally, and exits the articular surface at the intercondylar eminence of the tibial plateau.

The appropriately placed ACL graft has an oblique orientation and on sagittal oblique magnetic resonance images is posterior to the intercondylar roof line (Blumensaat line). On the lateral radiograph, the femoral osseous tunnel extends from the intersection of two lines, which represent the posterior femoral cortex and the intercondylar roof. On the frontal radiograph, the femoral tunnel begins laterally, just superior to the lateral femoral condyle, and emerges on the superolateral aspect of the intercondylar notch. Once standard radiographs have been obtained, the integrity and possible complications of the ACL graft are evaluated frequently with magnetic resonance imaging (Martin, 2002; Resnick, 2007).

Back to Top

Uniplanar external fixator with Steinman pins

Tension band wire

Broken trochanteric osteotomy wire

Cerclage wires

Unilateral external fixator

Tension band wire olecranon fracture

Broken trochanteric osteotomy wire

Femoral cerclage wires

The unilateral pins just penetrate the far cortex and are connected with radiolucent rod. The fixator is immobilizing a tibial fracture. From Benjamin, 1994

Tension band fixation of an olecranon fracture using a cancellous screw. The looped wire transforms the distractive pull of the triceps into compression at the fracture site. From Benjamin, 1994

A cemented total hip arthroplasty has a trochanteric osteotomy fixed with wires. The wire is broken laterally. The arrows point to evidence of polyethylene wear in the acetabulum. From Benjamin, 1994

A long stem bipolar hip prosthesis has cerclage wires in the diaphysis of the femur. From Benjamin, 1994

The anatomy of a fixation screw

Cancellous and cortical bone screws

Hip cannulated cancellous fixation screws

Hip dynamic compression screw set

The anatomy of a fixation screw

Cortical and cancellous bone screws

Hip cannulated cancellous fixation screws

Dynamic compression screw

From Benjamin, 1994

From Benjamin, 1994


1- lag screw; 2-compression screw; 3-barrel and side plate. From Benjamin, 1994

Cannulated screw with threaded-tipped guide pin and Herbert screw Cannulated screws ABSOLUTE Interference screw Biosure interference screw
Cannulated fixation screw Cannulated screws Kurosaka-type screw Biosure interference screw
From Benjamin, 1994 Image © Smith & Nephew. Used with permission. From DePuy-Synthes. © DePuy Synthes 2016.  All rights reserved. ABSOLUTE™ is a trademark of DePuy Synthes. Image © Smith & Nephew. Used with permission.
Dynamic compression hip screw

Dynamic compression hip screw, partially threaded cannulated cancellous fixation screw and washer

Dynamic compression hip screw


Dymanic hip screw

Dynamic Compression Screw

Hip Dynamic Compression Screw

Dynamic compression screw lateral view

There is also a partially threaded cannulated cancellous fixation screw.




Herbert screw

Herbert screws

Herbert screw

Acutrak screw

Herbert screw

Herbert screws

Herbert screw in a scaphoid fracture

Acutrak screw

Note the different screw pitch on each end. From Benjamin, 1994

Also know as headless (recessed) fixation screws. From Taljanovic, 2005 There is a healing scaphoid fracture, and a fiberglass splint is in place. From Benjamin, 1994

The Acutrak screw stabilizes a scaphoid fracture.

Accutrak screws


Dynamic compression plate and syndesmotic screws as well as two fully threaded cortical medial malleolus screws


Accutrak screws

Accutrak screws

Left ankle dynamic compression plate and two syndesmotic screws

Left ankle dynamic compression plate and two syndesmotic screws

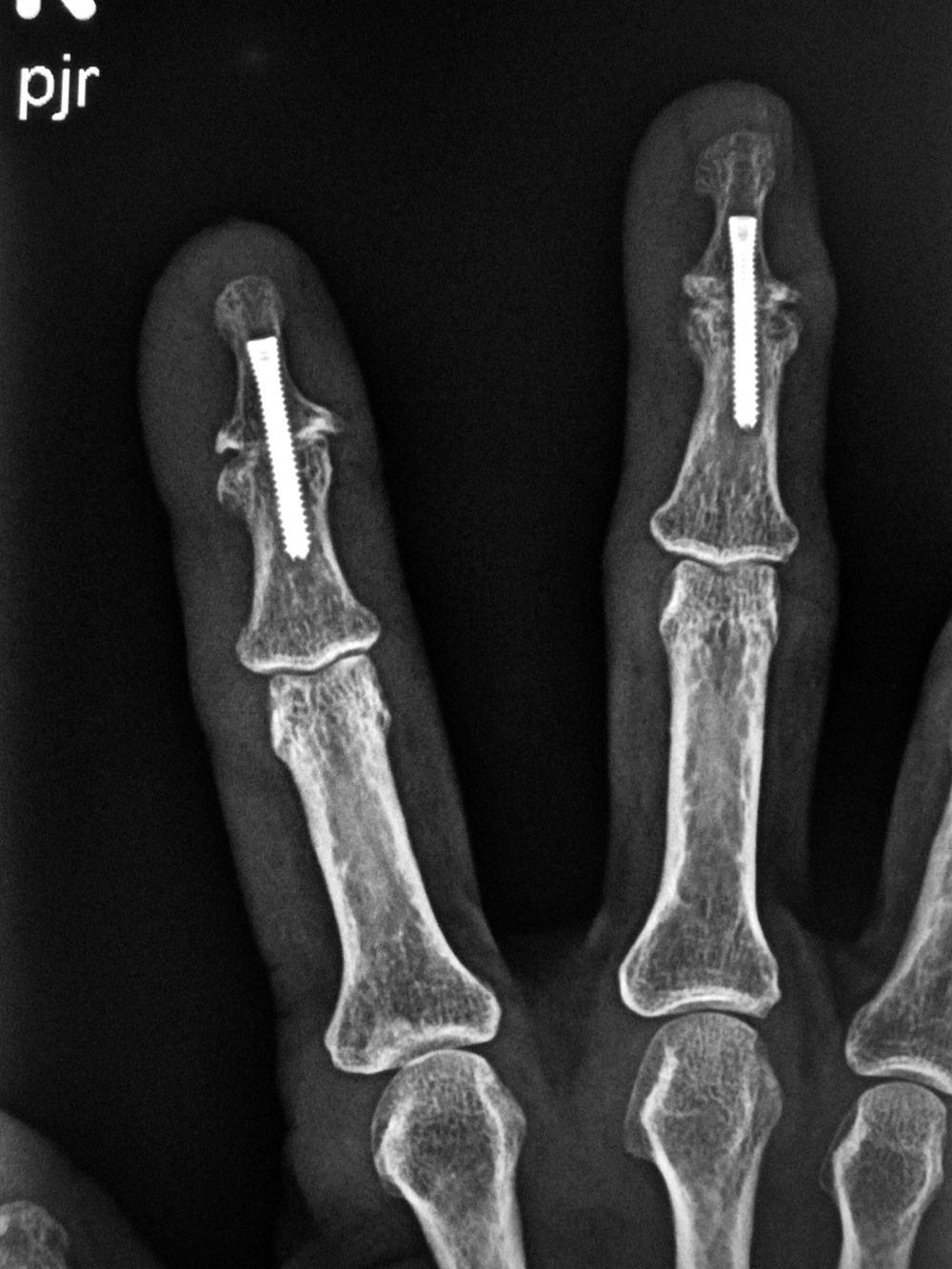

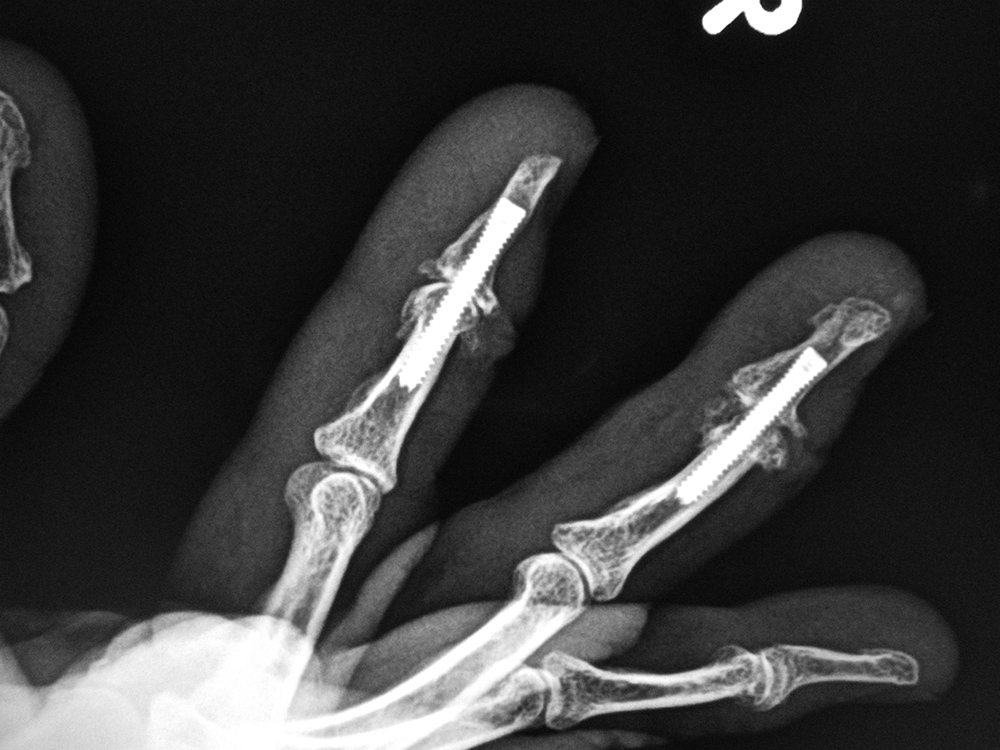

The Accutrak screws are used for arthrodesis of the distal interphalangeal joints of the right index and long fingers in a woman with severe osteoarthritis.
